| Brand Name : | Hyclamavin |
| Model Number : | SQC-A |
| Certification : | ISO9001 |
| Price : | USD500-USD4000 |
| Supply Ability : | 1000 sets per month |
| Delivery Time : | 4-6 weeks |
Excellent performance

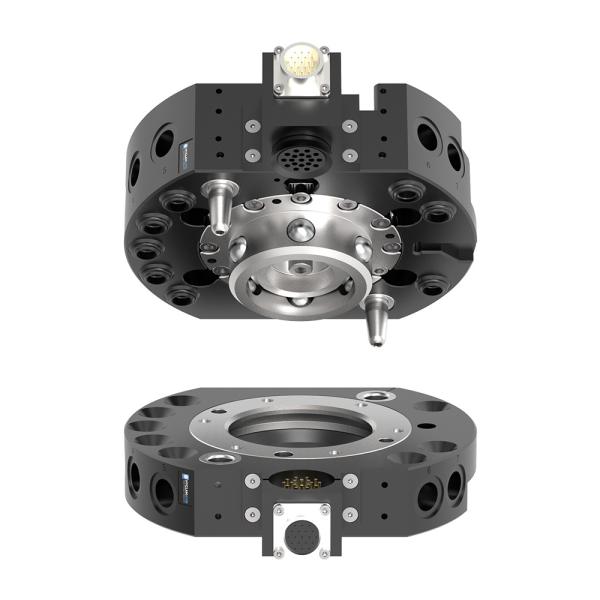

1.SQC-A quick-change tool changers allow for automatic tool switching, equipped with a fail-safe mechanism to prevent tool drop during air loss.
● Fail-safe locking design keeps piston force minimal, ensuring
tool plate retention even in case of air cut-off
● Enlarged piston diameter and external clamping enhance torque
capacity
● All functional parts are made from hardened stainless steel for
durability
● Manual emergency release is possible without spring
counter-forces
● Quick tool changes during maintenance reduce downtime
● Automatic tool change boosts operator safety
Optional spring
1.SQC-A tool changers can include an internal spring for extra safety during air failure.
● Internal spring improves the locking force of the quick-change
mechanism
● Spring prevents the tool plate from dropping during air loss,
serving as double safety alongside the fail-safe system
Model and Technical Parameters
| Model | Recommended handling weight[Kg] | Locking force (5.5bar)[N] | Repeat accuracy [mm] | Master plate weight [kg] | Tool plate weight [kg] | Max. moment My/Mx[Nm] | Max. moment Mz[Nm] | Air connection thread Pneumatic feed- through |
| SQC-1A | 1.4 | 170 | 0.01 | 0.04 | 0.03 | 2.75 | 3.43 | 4-M5 |
| SQC-5A | 8 | 690 | 0.02 | 0.29 | 0.15 | 37 | 50 | 6-M5 |
| SQC-11A | 16 | 1100 | 0.02 | 0.14 | 0.09 | 76 | 105 | 6-M5 |
| SQC-20A | 25 | 2300 | 0.02 | 0.51 | 0.33 | 170 | 218 | 12-M5 |
| SQC-21A | 25 | 2300 | 0.02 | 0.51 | 0.33 | 170 | 229 | 8-G1/8″ |
| SQC-40A | 50 | 4500 | 0.02 | 1.12 | 0.61 | 673 | 673 | 8-G1/8″ |
| SQC-41A | 50 | 4500 | 0.02 | 1.4 | 0.7 | 473 | 649 | 6-G3/8″ 4-G1/8″ |
| SQC-60A | 75 | 7400 | 0.02 | 1.3 | 0.7 | 586 | 315 | 8-G1/8″ |
| SQC-71A | 79 | 8100 | 0.02 | 1.86 | 1.34 | 1188 | 840 | 8-G1/4″ |
| SQC-76A | 100 | 12000 | 0.02 | 2.3 | 1.4 | 1625 | 2100 | 5-G3/8″ |
| SQC-110A | 150 | 12000 | 0.02 | 4 | 2.1 | 2350 | 2350 | 8-G3/8″ |
| SQC-150A | 200 | 16000 | 0.02 | 4.85 | 2.75 | 4075 | 1840 | 10-G3/8″ |
| SQC-160A | 300 | 31000 | 0.02 | 6.45 | 2.9 | 7165 | 3810 | 5-G3/8″ 4-G1/2″ |
| SQC-300A | 450 | 35000 | 0.02 | 11.86 | 7.34 | 9870 | 8450 | 10-G3/8″ |
